4-Post Tall (Wide)
- Single hydraulic lifting cylinder direct drive
- Multiple parking heights
- 100% Laser cutting process for all parts and the whole structure
- Preassembled parts for easy installation and relocation
- Safety key switch controller
- Anti-skid ramp and platform
- Anti-rust smooth powder coating finish
- Enhanced anti-corrosion galvanized waving plates
- Customizable colors
- Lock release: Electrical
- 5-Year Warranty on parts, 1-Year Warranty on labor
Safety System
- Limit switches
- 12 Full range anti-fall locks
- Emergency stop button
- Anti-loosening locks
- APPLICATION SCENARIOS
- PARAMETERS
Description
| Vehicle Model | Sedan, SUV, regular pick-up truck |
| Foundation | C25-C30, thickness > minimum 4 Inches, suggested 6 Inches |
| Ceiling Height | 138 inches |
| Buildings | Residential or Storage |
| Environment | Indoor/Outdoor (Outdoor protection devices available) |
 |
Model | SAL-4PTW |
![](https://stakautolifts.com/wp-content/uploads/2024/05/car-lit.png") |
Lifting Capacity | 7,937 lbs |

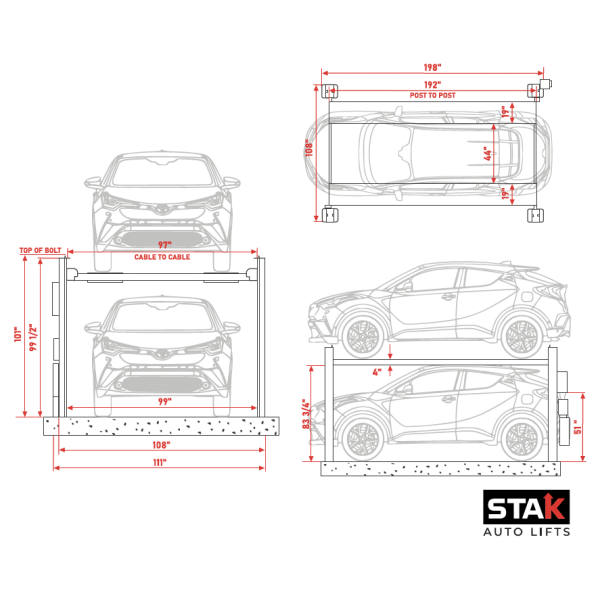

| A – | Overall Width | 198″ |
| B – | Post-to-Post Width | 192″ |
| C – | Overall Length | 108″ |
| D – | Overall Height | 101″ |
| E – | Height to top of Bolt | 99 ½ “ |
| F – | Overall Base Width | 111″ |
| G – | Base Width | 108″ |
| H – | Cable-to-Cable Width | 97″ |
| I – | Drive Thru Width | 99″ |
| J – | Vehicle Clearance Between Posts | 44″ |
| K – | Side clearance (Right Side) | 19″ |
| L – | Side Clearance (Left Side) | 19″ |
| M – | Lifting Height | 83 ¾” |
| N – | Motor Height | 51″ |
| O – | Vehicle Clearance (Raised) | 4″ |
 |
Vehicle Height | Up to 80.5″ |
 |
Vehicle Width | Up to 94″ |
 |
Vehicle Length | < 197″ |
 |
Control Box | Integrated modules for simple writing |
 |
Power Unit | 1.2 kW Hydraulic |
 |
Electrical Requirements | 120V, 1 phase |
*Most parameters can be customized based on your requirements.
