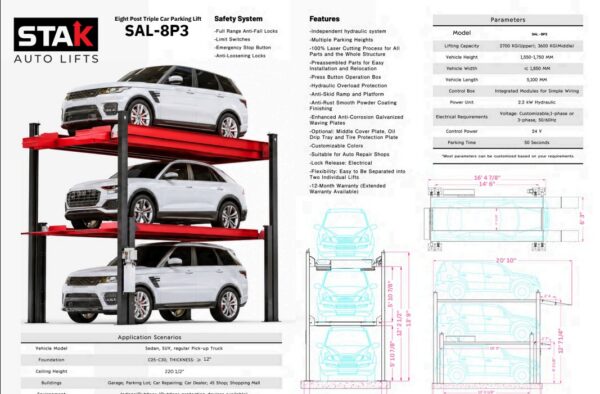

8-Post Triple Car Parking Lift
Features
- Independent hydraulic system
- Multiple Parking Heights
- 100% Laser Cutting Process for All Parts and the Whole Structure
- Preassembled Parts for Easy Installation and Relocation
- Press Button Operation Box
- Hydraulic Overload Protection
- Anti-Skid Ramp and Platform
- Anti-Rust Smooth Powder Coating Finishing
- Enhanced Anti-Corrosion Galvanized Waving Plates
- Optional: Middle Cover Plate, Oil Drip Tray and Tire Protection Plate
- Customizable Colors
- Suitable for Auto Repair Shops
- Lock Release: Electrical
- Flexibility: Easy to Be Separated into Two Individual Lifts
- 12-Month Warranty (Extended Warranty Available)
Safety System
- Full Range Anti-Fall Locks
- Limit Switches
- Emergency Stop Button
- Anti-Loosening Locks
- APPLICATION SCENARIOS
- PARAMETERS
Description
| Vehicle Model | Sedan, SUV, regular Pick-up Truck |
| Foundation | C25-C30, thickness: > 300 MM |
| Ceiling Height | 220.472 inches |
| Buildings | Garage, Parking Lot, Car Repairing, Car Dealer, Shopping Mall |
| Environment | Indoor/Outdoor (Outdoor protection devices available) |
 |

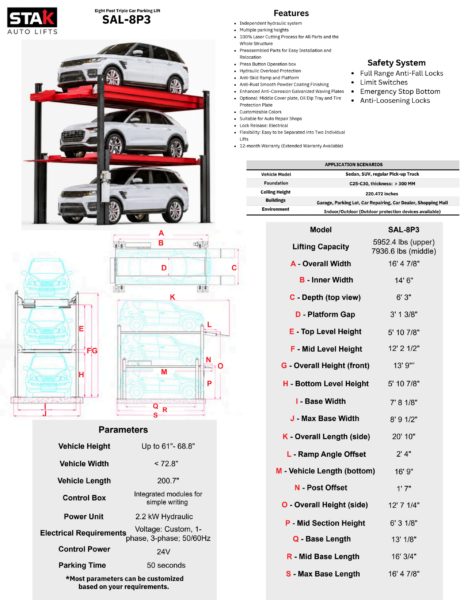

Model | SAL-8P3 |
![](https://stakautolifts.com/wp-content/uploads/2024/05/car-lit.png") |
Lifting Capacity | 5952.4 lbs (upper) 7936.6 lbs (middle) |
| A – | Overall Width | 16′ 4 7/8″ |
| B – | Inner Width | 14′ 6″ |
| C – | Depth (top view) | 6’3″ |
| D – | Platform Gap | 3’1 3/8″ |
| E – | Top Level Height | 5’10 7/8″ |
| F – | Mid Level Height | 12’2 1/2″ |
| G – | Overall Height (front) | 13’9″ |
| H – | Bottom Level Height | 5’10 7/8″ |
| I – | Base Width | 7’8 1/8″ |
| J – | Max Base Width | 8′ 9 1/2″ |
| K – | Overall Length (side) | 20’10” |
| L – | Ramp Angle Offset | 2’4″ |
| M – | Vehicle Length (bottom) | 16′ 9″ |
| N – | Post Offset | 1′ 7″ |
| N – | Post Offset | 1′ 7″ |
| O – | Overall Height (side) | 12’7 1/4″ |
| P – | Mid Section Height | 6′ 3 1/8″ |
| Q – | Base Length | 13′ 1/8″ |
| R – | Mid Base Length | 16′ 3/4″ |
| S – | Max Base Length | 16′ 4 7/8″ |
 |
Vehicle Height | Up to 61″- 68.8″ |
 |
Vehicle Width | < 72.8" |
 |
Vehicle Length | 200.7″ |
 |
Control Box | Integrated modules for simple writing |
 |
Power Unit | 2.2 kW Hydraulic |
 |
Electrical Requirements | Voltage: Customizable; 1-phase or 3-phase; 50/60Hz |
 |
Control Power | 24 V |
 |
Parking Time | 50 Seconds |
*Most parameters can be customized based on your requirements.
