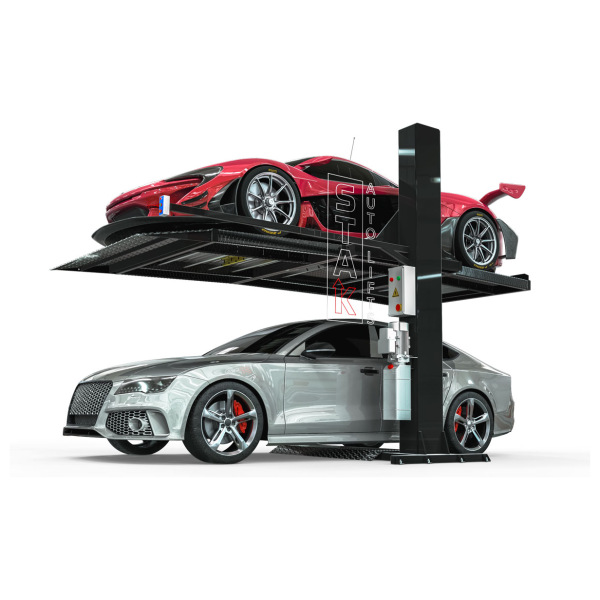

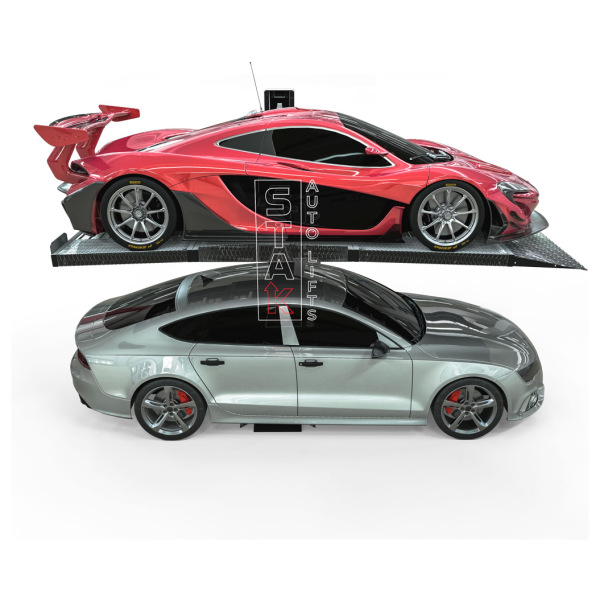

One Post Parking Lift$11,463.00
Features
- One Hydraulic Lifting Chains Direct
- 70” Parking Height
- 100% Laser Cutting Process for All Parts and the Whole Structure
- Preassembled Parts for Easy Installation
- Effortless Disassembly and Relocation
- Safety Key Switch Controller
- Hydraulic Overload Protection
- Anti-Skid Ramp and Platform
- Anti-Rust Smooth Powder Coating Finishing
- Enhanced Anti-Corrosion Galvanized
- Waving Plates
- Tire Protection Plates
- IP65 Electrical Devices Available for
- Outdoor Use
- 5 year waranty parts, 1 year labor
- Customizable Colors
- The front and rear interchangeable parking ramps allow users to get on and off the car
- Saving-space single column design, better parking experience
Safety System
- Anti-fall locks Limit
- Emergency stop button
- Lock down button
- Limit switches
- Photocell sensor
$11,463.00
Features
- One Hydraulic Lifting Chains Direct
- 70” Parking Height
- 100% Laser Cutting Process for All Parts and the Whole Structure
- Preassembled Parts for Easy Installation
- Effortless Disassembly and Relocation
- Safety Key Switch Controller
- Hydraulic Overload Protection
- Anti-Skid Ramp and Platform
- Anti-Rust Smooth Powder Coating Finishing
- Enhanced Anti-Corrosion Galvanized
- Waving Plates
- Tire Protection Plates
- IP65 Electrical Devices Available for
- Outdoor Use
- 5 year waranty parts, 1 year labor
- Customizable Colors
- The front and rear interchangeable parking ramps allow users to get on and off the car
- Saving-space single column design, better parking experience
Safety System
- Anti-fall locks Limit
- Emergency stop button
- Lock down button
- Limit switches
- Photocell sensor
- APPLICATION SCENARIOS
- PARAMETERS
Description
| Vehicle Model | Sedan, Small SUV |
| Foundation | C25-C30; thickness: ≥200mm |
| Ceiling Height | ≥ 149” (Sedan+SUV)/169” (2 SUVs) |
| Buildings | Private Garage; Residential Community; Shopping Mall; 4S Shop; Car Dealership |
| Environment | Indoor/Outdoor (Outdoor protection devices available) |
 |

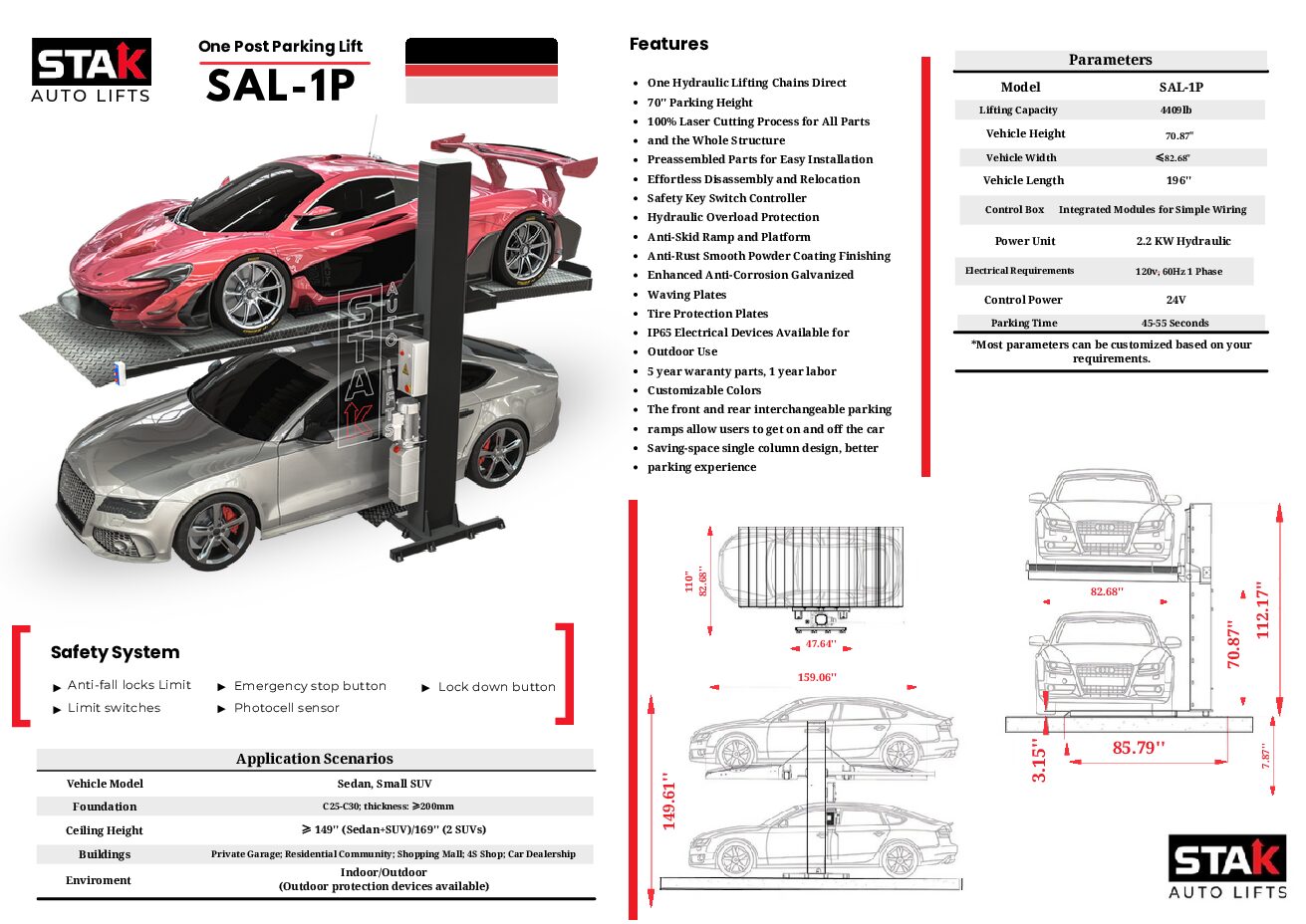

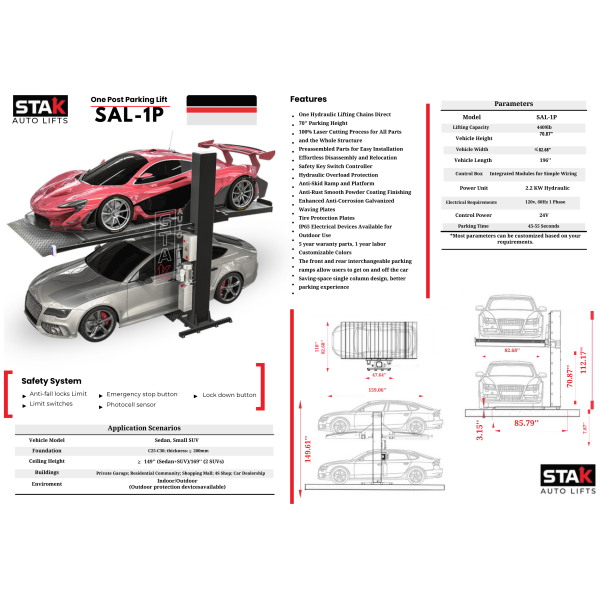

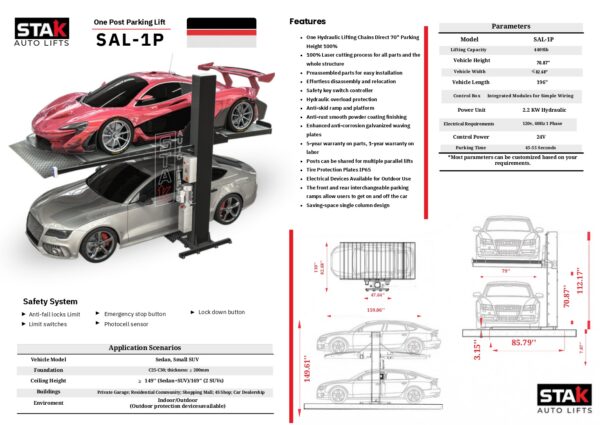

Model | SAL-1P |
 |
Lifting Capacity | 4409lb |
 |
Vehicle Height | 70.87" |
 |
Vehicle Width | ≤ 82.68" |
 |
Vehicle Length | 196” |
 |
Control Box | Integrated modules for simple wiring |
 |
Power Unit | 2.2 KW Hydraulic |
 |
Electrical Requirements |
120v, 60Hz 1 Phase |
 |
Parking Time | 45-55 Seconds |
*Most parameters can be customized based on your requirements.
*Does not include domestic shipping and installation.
