4-Post Triple Stak$17,274.00
Features
- Single hydraulic lifting cylinder direct drive
- Multiple parking heights
- 100% Laser cutting process for all parts and the whole structure
- Preassembled parts for easy installation and relocation
- Safety key switch controller
- Hydraulic overload protection
- Anti-skid ramp and platform
- Anti-rust smooth powder coating finish
- Customizable colors
- Lock Release: Electrical
- 5-Year Warranty on parts, 1-Year Warranty on labor
- Three vehicles parked at the same time
Safety System
- Full range anti-fall locks
- Limit switches
- Emergency stop button
- Anti-loosening locks
$17,274.00
Features
- Single hydraulic lifting cylinder direct drive
- Multiple parking heights
- 100% Laser cutting process for all parts and the whole structure
- Preassembled parts for easy installation and relocation
- Safety key switch controller
- Hydraulic overload protection
- Anti-skid ramp and platform
- Anti-rust smooth powder coating finish
- Customizable colors
- Lock Release: Electrical
- 5-Year Warranty on parts, 1-Year Warranty on labor
- Three vehicles parked at the same time
Safety System
- Full range anti-fall locks
- Limit switches
- Emergency stop button
- Anti-loosening locks
- APPLICATION SCENARIOS
- PARAMETERS
Description

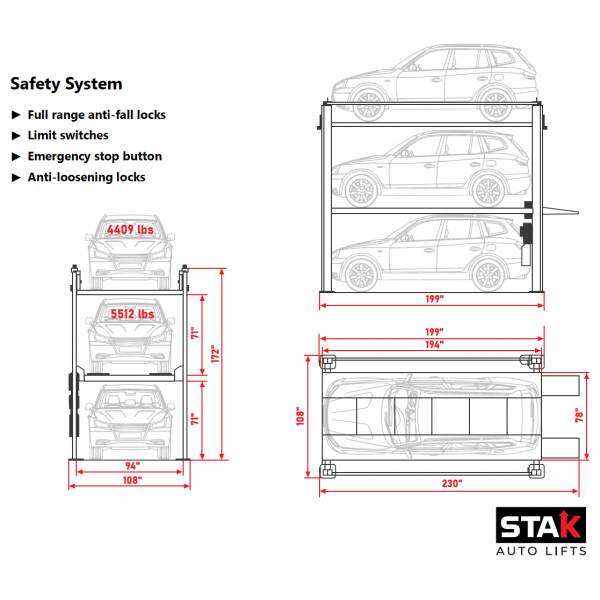

| Vehicle Model | Sedan, regular SUV |
| Foundation | Slab thickness recommended 9.0 |
| Ceiling Height | 216 1/2 Inches |
| Buildings | Residential or Storage |
| Environment | Indoor/Outdoor (Outdoor protection devices available) |
 |
Model | SAL-4P3 |
![](https://stakautolifts.com/wp-content/uploads/2024/05/car-lit.png") |
Lifting Capacity | 4,409 lbs (upper); 5,512 lbs (middle) |
 |
Vehicle Height | 71″ |
 |
Vehicle Width | 84″ |
 |
Vehicle Length | < 196 3/4″ |
 |
Control Box | Integrated modules for simple wiring |
 |
Power Unit | 3.0 kW Hydraulic |
 |
Electrical Requirements | 208-240V, 3 phase |
 |
Parking Time | 55 seconds |
*Most parameters can be customized based on your requirements.
*Does not include domestic shipping and installation.
