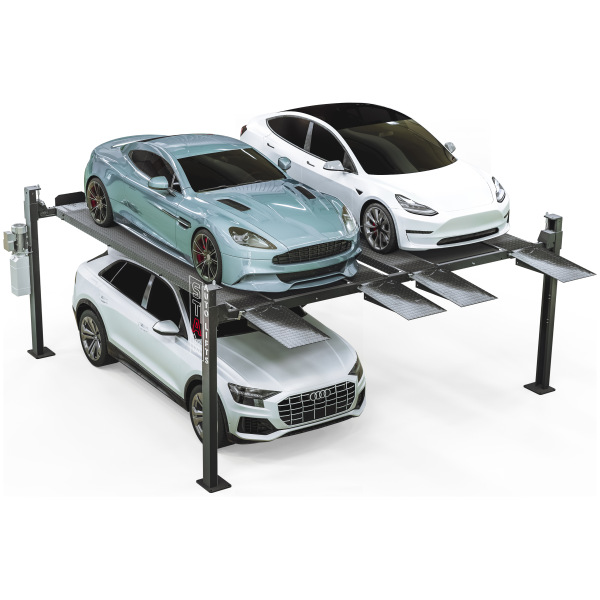

4-Post Double (Wide)
Features
- Single hydraulic lifting cylinder direct drive
- Multiple parking heights
- 100% Laser cutting process for all parts and the whole structure
- Preassembled parts for easy installation and relocation
- Safety key switch controller
- Enhanced anti-corrosion galvanized waving plates
- Lock release: Electrical
- 5-Year Warranty on parts, 1-Year Warranty on labor
Safety System
- Full range anti-fall locks
- Limit switches
- Emergency stop button
- Anti-loosening locks
- APPLICATION SCENARIOS
- PARAMETERS

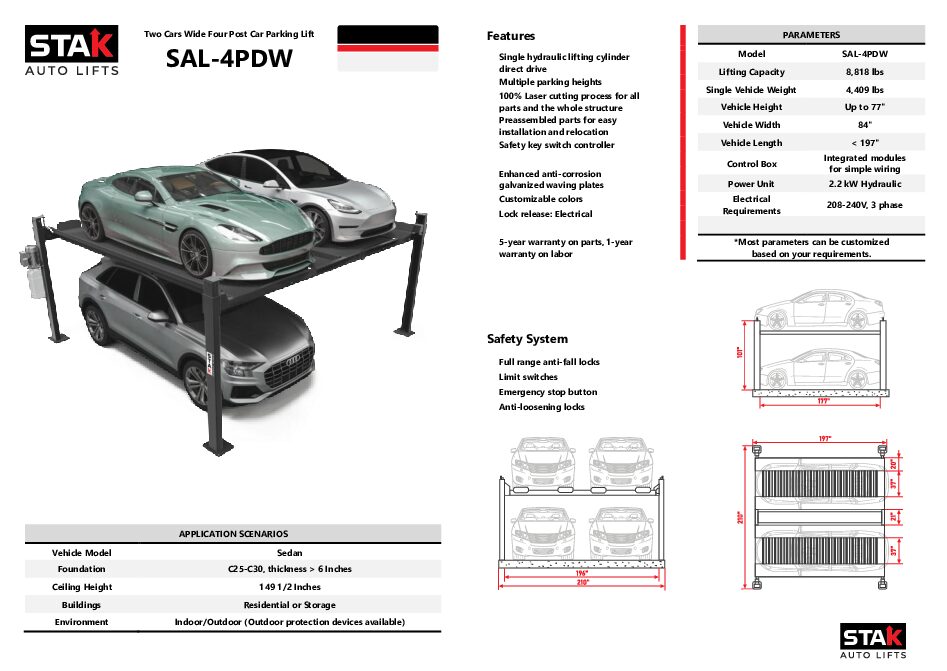

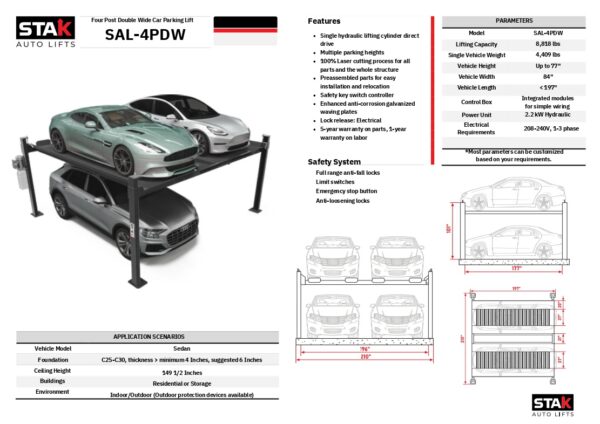

Description
| Vehicle Model | Sedan |
| Foundation | C25-C30, thickness > minimum 4 Inches, suggested 6 Inches |
| Ceiling Height | 149 1/2 Inches |
| Buildings | Residential or Storage |
| Environment | Indoor/Outdoor (Outdoor protection devices available) |
 |
Model | SAL-4PDW |
![](https://stakautolifts.com/wp-content/uploads/2024/05/car-lit.png") |
Lifting Capacity | 8,818 lbs |
 |
Single Vehicle Weight | 4,409 lbs |
| A – | Platform Length | 197″ |
| B – | Overall Width | 210″ |
| C – | Top Clearance | 20″ |
| D – | Upper Parking Clearance | 37″ |
| E – | Deck-to-Deck Spacing | 21″ |
| F – | Lower Parking Clearance | 37″ |
| G – | Lower Parking Clearance | 37″ |
| H – | Overall Length | 177″ |
| I – | Vehicle Width | 196″ |
| J – | Platform Width | Up to 77″ |
| K – | Vehicle Height | 84″ |
 |
Control Box | 2.2 kW Hydraulic |
 |
Power Unit | Integrated modules |
 |
Electrical Requirements | 208-240V, 1-3 phase |
*Most parameters can be customized based on your requirements.
