Low Ceiling Hydraulic Scissor Lift
Features
- Tilting design
- Faster lifting speed than other 2-post lifts
- 100% Laser cutting process for all parts and the whole structure
- Preassembled parts for easy installation
- Safety key switch controller
- Anti-rust smooth powder coating finishing
- Enhanced anti-corrosion galvanized waving plates
- Suitable for low ceiling height and narrow space
- 5-Year Warranty on parts, 1-Year Warranty on labor
Safety System
- Anti-fall hooks
- Limit switches
- Emergency stop button
- Photocell sensor
- APPLICATION SCENARIOS
- PARAMETERS
Description
| Vehicle Model | Sedan |
| Foundation | C25-C30, thickness > minimum 4 Inches, suggested 6 Inches |
| Ceiling Height | Minimum 114 1/4 Inches |
| Buildings | Residential or Storage |
| Environment | Indoor |
 |
Model | SAL-2PS |
![](https://stakautolifts.com/wp-content/uploads/2024/05/car-lit.png") |
Lifting Capacity | 4,410 lbs |

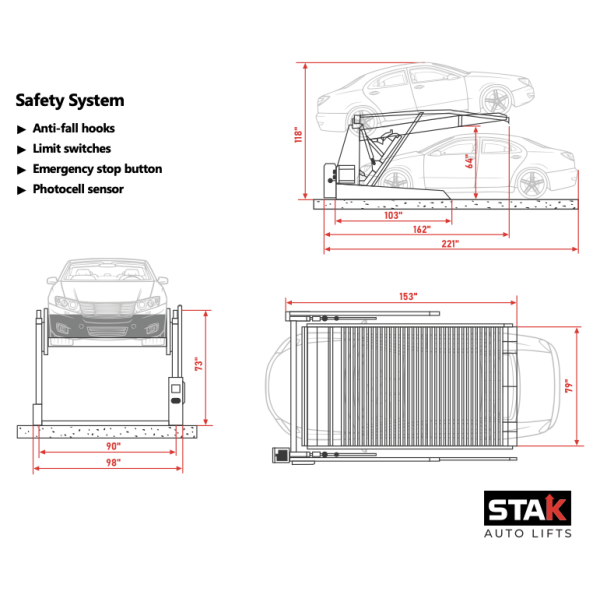

| A – | Overall Height | 118″ |
| B – | Platform Height | 64″ |
| C – | Base Length | 103″ |
| D – | Ramp Length | 162″ |
| E – | Max Length | 221″ |
| F – | Post Height | 73″ |
| G – | Base Width | 90″ |
| H – | Max Width | 98″ |
| I – | Overall Length | 163″ |
| J – | Overall Width | 77″ |
 |
Vehicle Height | Up to 64″ |
 |
Vehicle Width | 79″ |
 |
Vehicle Length | 197″ |
 |
Control Box | Integrated modules for simple writing |
 |
Power Unit | 2.2 kW Hydraulic |
 |
Electrical Requirements | 120V, 1 phase |
 |
Parking Time | 45-55 seconds |
*Most parameters can be customized based on your requirements.
